07. Broadcasting
We can send the same Turbo Streams we're returning to our users after a form submission over WebSockets and update the page for all users visiting it! Broadcasts may be triggered automatically whenever a model updates or manually whenever you want to broadcast it.
Setting Up Reverb
Let's setup Reverb to handle our WebSockets connections.
First, run the install:broadcasting Artisan command:
php artisan install:broadcasting --without-node
When it asks if you wan to install Reverb, answer "Yes". After that, we'll install the JS dependencies with importamps:
php artisan importmap:pin laravel-echo pusher-js current.js
Next, we'll need to update the published echo.js file. It currently uses import.meta.env.*, which requires a build step. Instead, we'll update it to use the current.js to read the configs from meta tags we'll add to our layouts. But first, replace the echo.js with the following version:
import Echo from 'laravel-echo';
import Pusher from 'pusher-js';
window.Pusher = Pusher;
import { Current } from 'current.js';
window.Current = Current;
window.Echo = new Echo({
broadcaster: 'reverb',
key: Current.reverb.appKey,
wsHost: Current.reverb.host,
wsPort: Current.reverb.port ?? 80,
wssPort: Current.reverb.port ?? 443,
forceTLS: (Current.reverb.scheme ?? 'https') === 'https',
enabledTransports: ['ws', 'wss'],
});
We also need to update the bootstrap.js file to fix the import that was appended by Reverb to the Importmap style:
// ...
/**
* Echo exposes an expressive API for subscribing to channels and listening
* for events that are broadcast by Laravel. Echo and event broadcasting
* allow your team to quickly build robust real-time web applications.
*/
import './echo';
import 'echo';
Next, let's create a new layout partial at resources/views/layouts/partials/reverb.blade.php with the following content:
<meta name="current-reverb-app-key" content="{{ config('broadcasting.connections.reverb.key') }}" />
<meta name="current-reverb-host" content="{{ config('broadcasting.connections.reverb.options.host') }}" />
<meta name="current-reverb-port" content="{{ config('broadcasting.connections.reverb.options.port') }}" />
<meta name="current-reverb-scheme" content="{{ config('broadcasting.connections.reverb.options.scheme') }}" />
Then, add that to the app.blade.php layout file:
<!DOCTYPE html>
<html lang="{{ str_replace('_', '-', app()->getLocale()) }}">
<head>
<meta charset="utf-8">
<meta name="viewport" content="width=device-width, initial-scale=1">
<meta name="csrf-token" content="{{ csrf_token() }}">
@if ($viewTransitions ?? false)
<meta name="view-transition" content="same-origin" />
@endif
@include('layouts.partials.reverb')
{{ $meta ?? '' }}
<title>{{ config('app.name', 'Laravel') }}</title>
<!-- ... -->
</head>
<!-- ... -->
</html>
Do the same for the guest layout:
<!DOCTYPE html>
<html lang="{{ str_replace('_', '-', app()->getLocale()) }}">
<head>
<meta charset="utf-8">
<meta name="viewport" content="width=device-width, initial-scale=1">
<meta name="csrf-token" content="{{ csrf_token() }}">
@if ($viewTransitions ?? false)
<meta name="view-transition" content="same-origin" />
@endif
@include('layouts.partials.reverb')
{{ $meta ?? '' }}
<!-- ... -->
</head>
<!-- ... -->
</html>
Now, make sure your .env file has the following configs:
BROADCAST_CONNECTION=reverb
REVERB_APP_ID=[REDACTED]
REVERB_APP_KEY=[REDACTED]
REVERB_APP_SECRET=[REDACTED]
REVERB_HOST="127.0.0.1"
REVERB_PORT="8080"
REVERB_SCHEME=http
That's all we need to configure Reverb. We may start the Reverb server process by running the Artisan command in a new terminal window:
php artisan reverb:start
That's it!
Broadcasting Turbo Streams
We'll start by broadcasting new Chirps to all users visiting the chirps.index page. To start, we'll register the private broadcasting channel named "chirps" in our routes/channels.php file. This way, only authenticated users will be able to receive broadcasts:
<?php
use App\Models\Chirp;
use Illuminate\Support\Facades\Broadcast;
Broadcast::channel('App.Models.User.{id}', function ($user, $id) {
return (int) $user->id === (int) $id;
});
Broadcast::channel('chirps', function ($user) {
return $user?->exists;
});
To start listening for Turbo Broadcasts all we need to do is use the <x-turbo::stream-from> Blade component in the page where we want to receive them from. In our case, that will be the chirps/index.blade.php view:
<x-app-layout>
<x-slot name="header">
<h2 class="flex items-center space-x-1 font-semibold text-xl text-gray-800 dark:text-gray-200 leading-tight">
<x-breadcrumbs :links="[__('Chirps')]" />
</h2>
</x-slot>
<x-turbo::stream-from source="chirps" />
<div class="py-12">
<!-- ... -->
</div>
</x-app-layout>
That's it! When the user visits that page, this component will automatically start listening to a chirps private channel for broadcasts. By default, it assumes we're using private channels, but you may configure it to listen to presence or public channels by passing the type prop to the component. In this case, we're passing a string for the channel name, but we could also pass an Eloquent model instance and it would figure out the channel name based on Laravel's conventions.
Now, we're ready to start broadcasting! First, let's add the Broadcasts trait to our Chirp model:
<?php
namespace App\Models;
use HotwiredLaravel\TurboLaravel\Models\Broadcasts;
use Illuminate\Database\Eloquent\Factories\HasFactory;
use Illuminate\Database\Eloquent\Model;
class Chirp extends Model
{
use HasFactory;
use Broadcasts;
protected $fillable = [
'message',
];
public function user()
{
return $this->belongsTo(User::class);
}
}
That trait will give us a bunch of methods we can call from our Chirp model instances. Let's use it in the store action of our ChirpController to send newly created Chirps to all connected users:
<?php
namespace App\Http\Controllers;
use App\Models\Chirp;
use Illuminate\Http\Request;
class ChirpController extends Controller
{
// ...
public function store(Request $request)
{
$validated = $request->validate([
'message' => ['required', 'string', 'max:255'],
]);
$chirp = $request->user()->chirps()->create($validated);
$chirp->broadcastPrependTo('chirps')
->target('chirps')
->partial('chirps.partials.chirp', ['chirp' => $chirp])
->toOthers();
if ($request->wantsTurboStream()) {
return turbo_stream([
turbo_stream($chirp, 'prepend'),
turbo_stream()->update('create_chirp', view('chirps._form')),
turbo_stream()->notice(__('Chirp created.')),
]);
}
return redirect()
->route('chirps.index')
->with('notice', __('Chirp created.'));
}
// ...
}
To test this, try visiting the /chirps page from two different browser windows and creating a Chirp in one of them. The other window should automatically update! We're also broadcasting on-the-fly in the same request/response life-cycle, which could slow down our response time a bit, depending on your load and your queue driver response time. We can delay the broadcasting (which includes view rendering) to a queued job by chaining the ->later() method, for example.
Now, let's make sure all visiting users receive Chirp updates whenever it changes. To achieve that, change the update action in the ChirpController:
<?php
namespace App\Http\Controllers;
use App\Models\Chirp;
use Illuminate\Http\Request;
use function HotwiredLaravel\TurboLaravel\dom_id;
class ChirpController extends Controller
{
// ...
public function update(Request $request, Chirp $chirp)
{
$this->authorize('update', $chirp);
$validated = $request->validate([
'message' => ['required', 'string', 'max:255'],
]);
$chirp->update($validated);
$chirp->broadcastReplaceTo('chirps')
->target(dom_id($chirp))
->partial('chirps.partials.chirp', ['chirp' => $chirp])
->toOthers();
if ($request->wantsTurboStream()) {
return turbo_stream([
turbo_stream($chirp),
turbo_stream()->notice(__('Chirp updated.')),
]);
}
return redirect()
->route('chirps.index')
->with('notice', __('Chirp updated.'));
}
// ...
}
Again, open two tabs, try editing a Chirp and you should see the other tab automatically updating! Cool, right?!
Finally, let's make sure deleted Chirps are removed from all visiting users' pages. Tweak the destroy action in the ChirpController like so:
<?php
namespace App\Http\Controllers;
use App\Models\Chirp;
use Illuminate\Http\Request;
use function HotwiredLaravel\TurboLaravel\dom_id;
class ChirpController extends Controller
{
// ...
public function destroy(Request $request, Chirp $chirp)
{
$this->authorize('delete', $chirp);
$chirp->delete();
$chirp->broadcastRemoveTo('chirps')
->target(dom_id($chirp))
->toOthers();
if ($request->wantsTurboStream()) {
return turbo_stream([
turbo_stream($chirp),
turbo_stream()->notice(__('Chirp deleted.')),
]);
}
return redirect()
->route('chirps.index')
->with('notice', __('Chirp deleted.'));
}
}
Now, open two tabs and try deleting a Chirp. You should see it being removed from the other tab as well!
Automatically Broadcasting on Model Changes
Since we're interested in broadcasting all changes of our Chirp model, we can remove a few lines of code and instruct Turbo Laravel to make that automatically for us.
We may achieve that by setting the $broadcasts property to true in our Chirp model. However, Turbo Laravel will automatically broadcast newly created models using the append Turbo Stream action. In our case, we want it to prepend instead, so we're setting the $broadcasts property to an array and using the insertsBy key to configure the creation action to be used.
We also need to override where these broadcasts are going to be sent to. Turbo Laravel will automatically send creates to a channel named using the pluralization of our model's basename, which would work for us. But updates and deletes will be sent to a model's individual channel names (something like App.Models.Chirp.1 where 1 is the model ID). This is useful because we're usually broadcasting to a parent model's channel via a relationship, which we can do with the $broadcastsTo property (see the docs to know more about this), but in our case we'll always be sending the broadcasts to a private channel named chirps.
Our Chirp model would end up looking like this:
<?php
namespace App\Models;
use HotwiredLaravel\TurboLaravel\Models\Broadcasts;
use Illuminate\Broadcasting\PrivateChannel;
use Illuminate\Database\Eloquent\Factories\HasFactory;
use Illuminate\Database\Eloquent\Model;
class Chirp extends Model
{
use HasFactory;
use Broadcasts;
protected $broadcasts = [
'insertsBy' => 'prepend',
];
protected $fillable = [
'message',
];
public function user()
{
return $this->belongsTo(User::class);
}
public function broadcastsTo()
{
return [
new PrivateChannel('chirps'),
];
}
}
We can then remove a few lines from our ChirpsController:
<?php
namespace App\Http\Controllers;
use App\Models\Chirp;
use Illuminate\Http\Request;
use function HotwiredLaravel\TurboLaravel\dom_id;
class ChirpController extends Controller
{
// ...
public function store(Request $request)
{
$validated = $request->validate([
'message' => ['required', 'string', 'max:255'],
]);
$chirp = $request->user()->chirps()->create($validated);
$chirp->broadcastPrependTo('chirps')
->target('chirps')
->partial('chirps.partials.chirp', ['chirp' => $chirp])
->toOthers();
if ($request->wantsTurboStream()) {
return turbo_stream([
turbo_stream($chirp, 'prepend'),
turbo_stream()->update('create_chirp', view('chirps._form')),
turbo_stream()->notice(__('Chirp created.')),
]);
}
return redirect()
->route('chirps.index')
->with('notice', __('Chirp created.'));
}
// ...
public function update(Request $request, Chirp $chirp)
{
$this->authorize('update', $chirp);
$validated = $request->validate([
'message' => ['required', 'string', 'max:255'],
]);
$chirp->update($validated);
$chirp->broadcastReplaceTo('chirps')
->target(dom_id($chirp))
->partial('chirps.partials.chirp', ['chirp' => $chirp])
->toOthers();
if ($request->wantsTurboStream()) {
return turbo_stream([
turbo_stream($chirp),
turbo_stream()->notice(__('Chirp updated.')),
]);
}
return redirect()
->route('chirps.index')
->with('notice', __('Chirp updated.'));
}
public function destroy(Request $request, Chirp $chirp)
{
$this->authorize('delete', $chirp);
$chirp->delete();
$chirp->broadcastRemoveTo('chirps')
->target(dom_id($chirp))
->toOthers();
if ($request->wantsTurboStream()) {
return turbo_stream([
turbo_stream($chirp),
turbo_stream()->notice(__('Chirp deleted.')),
]);
}
return redirect()
->route('chirps.index')
->with('notice', __('Chirp deleted.'));
}
}
You don't need a model to use Turbo Streams
We're only covering Turbo Stream broadcasts from an Eloquent model's perspective. However, you may broadcast anything using the TurboStream Facade or by chaining the broadcastTo() method call when using the turbo_stream() response builder function. Check the Broadcasting docs to know more about this.
Testing it out
Before testing it out, we'll need to start a queue worker. That's because Laravel 11 sets the QUEUE_CONNECTION=database by default instead of sync, and Turbo Laravel will send automatic broadcasts in background. Let's do that:
sail artisan queue:work --tries=1
Also, make sure you have the APP_URL correctly set to your local testing URL in your .env file, since URLs will be generated in background:
APP_URL=http://localhost:8000
Now we can test it and it should be working!

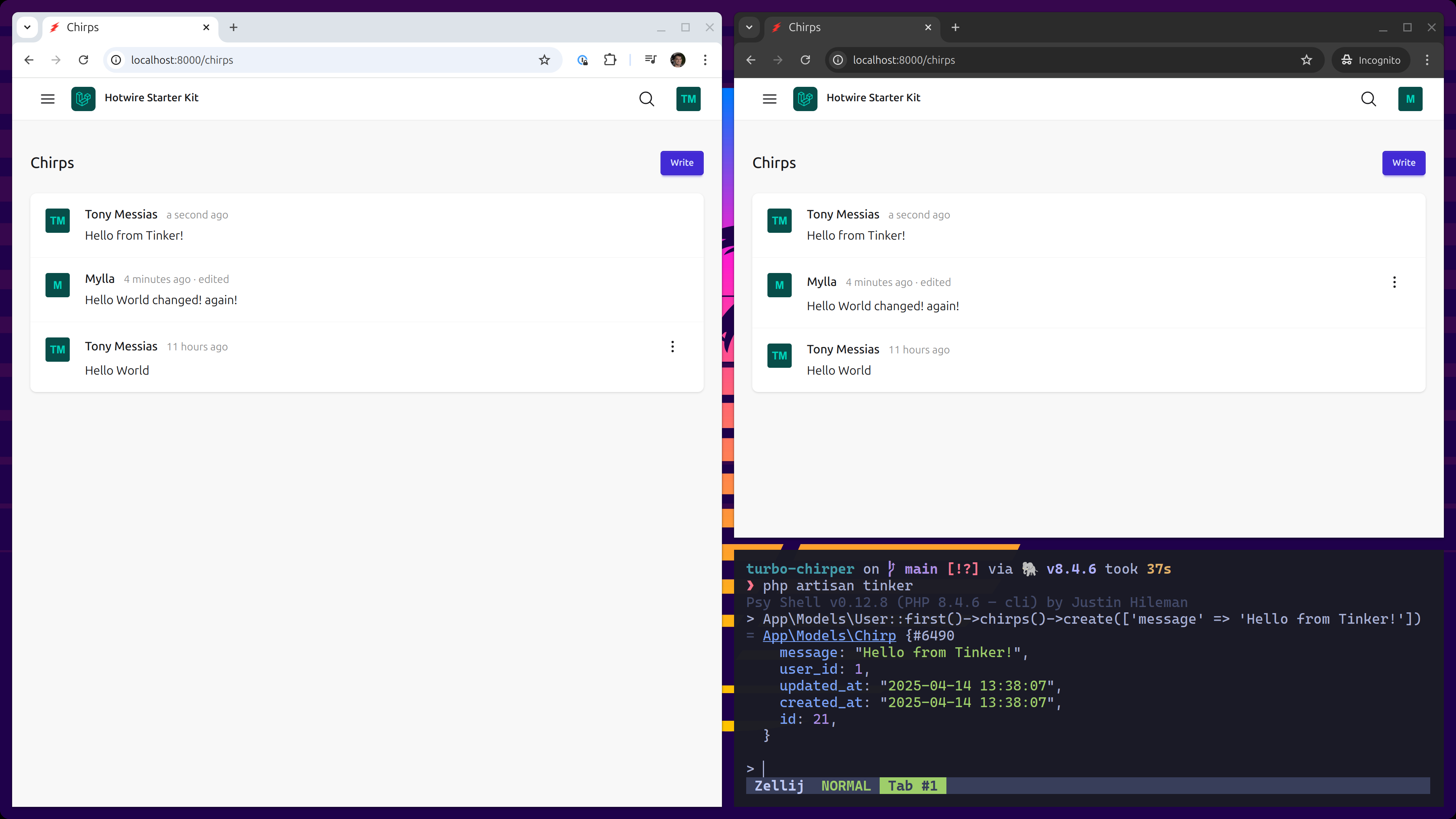

One more cool thing about this approach: users will receive the broadcasts no matter where the Chirp models were created from! We can test this out by creating a Chirp entry from Tinker, for example. To try that, start a new Tinker session:
php artisan tinker
And then create a Chirp from there:
App\Models\User::first()->chirps()->create(['message' => 'Hello from Tinker!'])
# App\Models\Chirp {#7426
# message: "Hello from Tinker!",
# user_id: 1,
# updated_at: "2023-11-26 23:01:00",
# created_at: "2023-11-26 23:01:00",
# id: 18,
# }

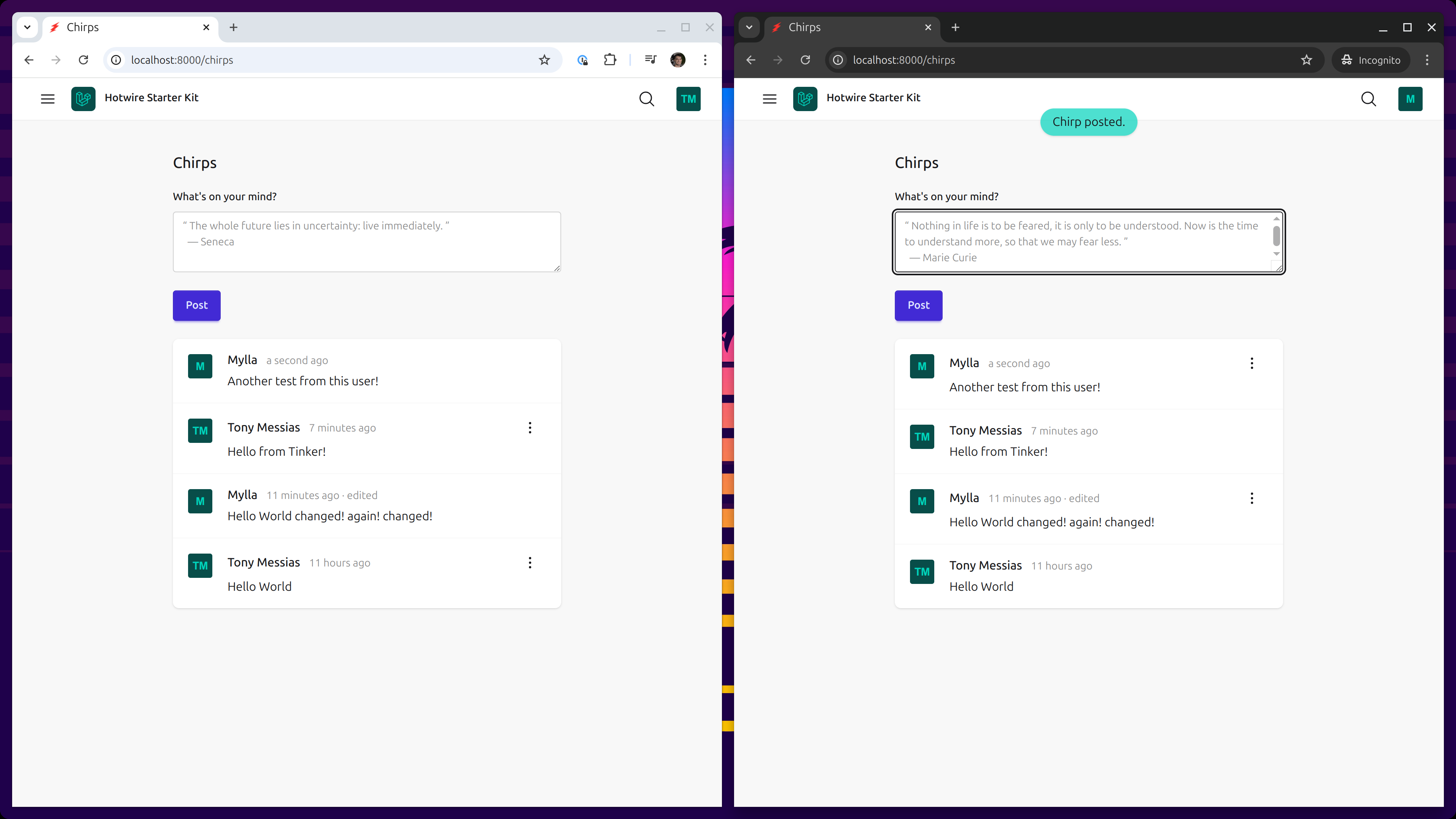

Extra Credit: Fixing The Missing Dropdowns
When creating the Chirp from Tinker, even though we see them appearing on the page, if you look closely, you may notice that the dropdown with the "Edit" and "Delete" buttons is missing. This would also be true if we were using a real queue driver, since it would defer the rendering of the partial to a background queue worker. That's because when we send the broadcasts to run in background, the partial will render without a request and session contexts, so our calls to Auth::id() inside of it will always return null, which means the dropdown would never render.
Instead of conditionally rendering the dropdown in the server side, let's switch to always rendering them and hide it from our users with a sprinkle of JavaScript instead.
First, let's update our layouts.partials.current-identity partial to include a few things about the currently authenticated user when there's one:
@auth
<meta name="current-identity-id" content="{{ Auth::user()->id }}" />
<meta name="current-identity-name" content="{{ Auth::user()->name }}" />
@endauth
Next, update the app.blade.php to include it:
<!DOCTYPE html>
<html lang="{{ str_replace('_', '-', app()->getLocale()) }}">
<head>
<meta charset="utf-8">
<meta name="viewport" content="width=device-width, initial-scale=1">
<meta name="csrf-token" content="{{ csrf_token() }}">
@if ($viewTransitions ?? false)
<meta name="view-transition" content="same-origin" />
@endif
@include('layouts.partials.reverb')
@include('layouts.partials.current-identity')
{{ $meta ?? '' }}
<title>{{ config('app.name', 'Laravel') }}</title>
<!-- ... -->
</head>
<body class="font-sans antialiased">
<!-- ... -->
</body>
</html>
Now, we're going to create a new Stimulus controller that is going to be responsible for the dropdown visibility. It should only show it if the currently authenticated user is the creator of the Chirp. First, let's create the controller:
php artisan stimulus:make visible_to_creator
Now, update the Stimulus controller to look like this:
import { Controller } from "@hotwired/stimulus"
// Connects to data-controller="visible-to-creator"
export default class extends Controller {
static values = {
id: String,
}
static classes = ['hidden']
connect() {
this.toggleVisibility()
}
toggleVisibility() {
if (this.idValue == window.Current.identity.id) {
this.element.classList.remove(...this.hiddenClasses)
} else {
this.element.classList.add(...this.hiddenClasses)
}
}
}
Now, let's update our chirps.partials.chirp.blade.php partial to use this controller instead of handling this in the server-side:
<x-turbo::frame :id="$chirp" class="p-6 flex space-x-2">
<svg xmlns="http://www.w3.org/2000/svg" class="h-6 w-6 text-gray-600 dark:text-gray-400 -scale-x-100" fill="none" viewBox="0 0 24 24" stroke="currentColor" stroke-width="2">
<!-- ... -->
</svg>
<div class="flex-1">
<div class="flex justify-between items-center">
<div>
<span class="text-gray-800 dark:text-gray-200">{{ $chirp->user->name }}</span>
<small class="ml-2 text-sm text-gray-600 dark:text-gray-400"><x-local-time-ago :value="$chirp->created_at" /></small>
@unless ($chirp->created_at->eq($chirp->updated_at))
<small class="text-sm text-gray-600"> · edited</small>
@endunless
</div>
@if (Auth::id() === $chirp->user->id)
<x-dropdown align="right" width="48">
<x-dropdown align="right" width="48" class="hidden" data-controller="visible-to-creator" data-visible-to-creator-id-value="{{ $chirp->user_id }}" data-visible-to-creator-hidden-class="hidden">
<!-- ... -->
</x-dropdown>
@endif
</div>
<p class="mt-4 text-lg text-gray-900 dark:text-gray-200">{{ $chirp->message }}</p>
</div>
</x-turbo::frame>
Next, we need to tweak our dropdown.blade.php Blade component to accept and merge the class, data-controller, and data-action attributes:
@props(['align' => 'right', 'width' => '48', 'contentClasses' => 'py-1 bg-white'])
@props(['align' => 'right', 'width' => '48', 'contentClasses' => 'py-1 bg-white', 'dataController' => '', 'dataAction' => ''])
<!-- ... -->
<div class="relative" data-controller="dropdown" data-action="turbo:before-cache@window->dropdown#closeNow click@window->dropdown#close close->dropdown#close">
<div {{ $attributes->merge(['class' => 'relative']) }} data-controller="dropdown {{ $dataController }}" data-action="turbo:before-cache@window->dropdown#closeNow click@window->dropdown#close close->dropdown#close {{ $dataAction }}">
<!-- ... -->
</div>
Now, if you try creating another user and test this out, you'll see that the dropdown only shows up for the creator of the Chirp!
This change also makes our entire chirps/partials/chirp.blade.php partial cacheable! We could cache it and only render that when changes are made to the Chirp model using the Chirp's updated_at timestamps, for example.
Is hiding the links with CSS enough?
Hiding the links in the frontend MUST NOT be your only protection here. Always ensure users are authorized to perform actions in the server side. We're already doing this in our controller using Laravel's Authorization Policies.
